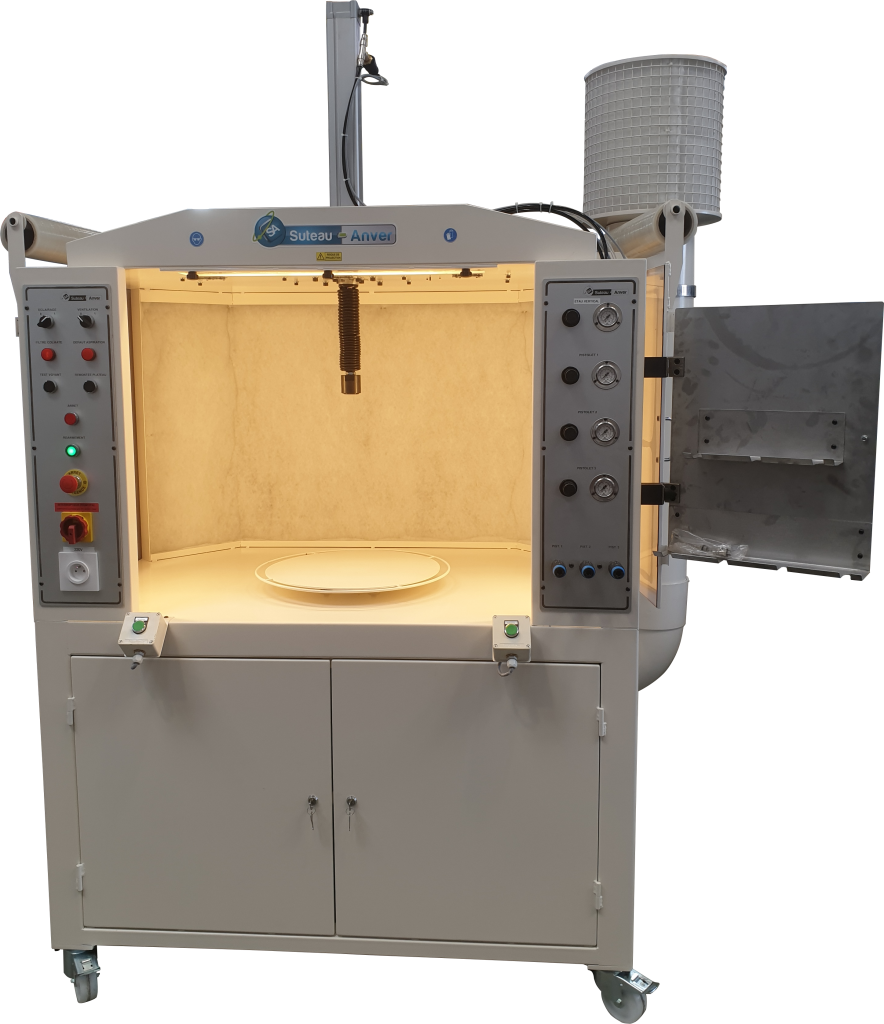

Coloring cabin – Model SA 256

This coloring cabin is designed to carry out the various finishing operations. It allows in a secured environment to realize with gun color spraying on edges or in full. It offers the possibility to work with different guns simultaneously changing adjustments and pressures.

It strong points :

Technical features

  • Coloring cabin with painted steel sheet RAL 9001
  • Size 1500 x 1350 x 1850 mm
  • Working area 900 x 800 x 900 mm
  • “Paint-stop” filter put in U-shaped frame, filter discharges housed in a drawer located at the rear of the cabin
  • Integrated fan in the cabin with discharge in a special filter with extractable frame
  • 4 Braked castors
  • Lighting on both sided and above
  • 3 Outputs “gun” with regulating and quick coupling

Options

  • Inverter for suction
  • Removable and manual rotating plate Ø 300 mm with pneumatic anti-rotation
  • Height adjustment by electric motor, stroke 200 mm
  • Vertical vice with pneumatic clamping and manual rotation.

A wide range of spare parts is also available and in stock.

Don’t hesitate to contact our spare parts department to the following email : achats@suteau-anver.com
